A RUGGED AND FLEXIBLE HIGH-SPEED, COMMERCIAL-GRADE ROUTER

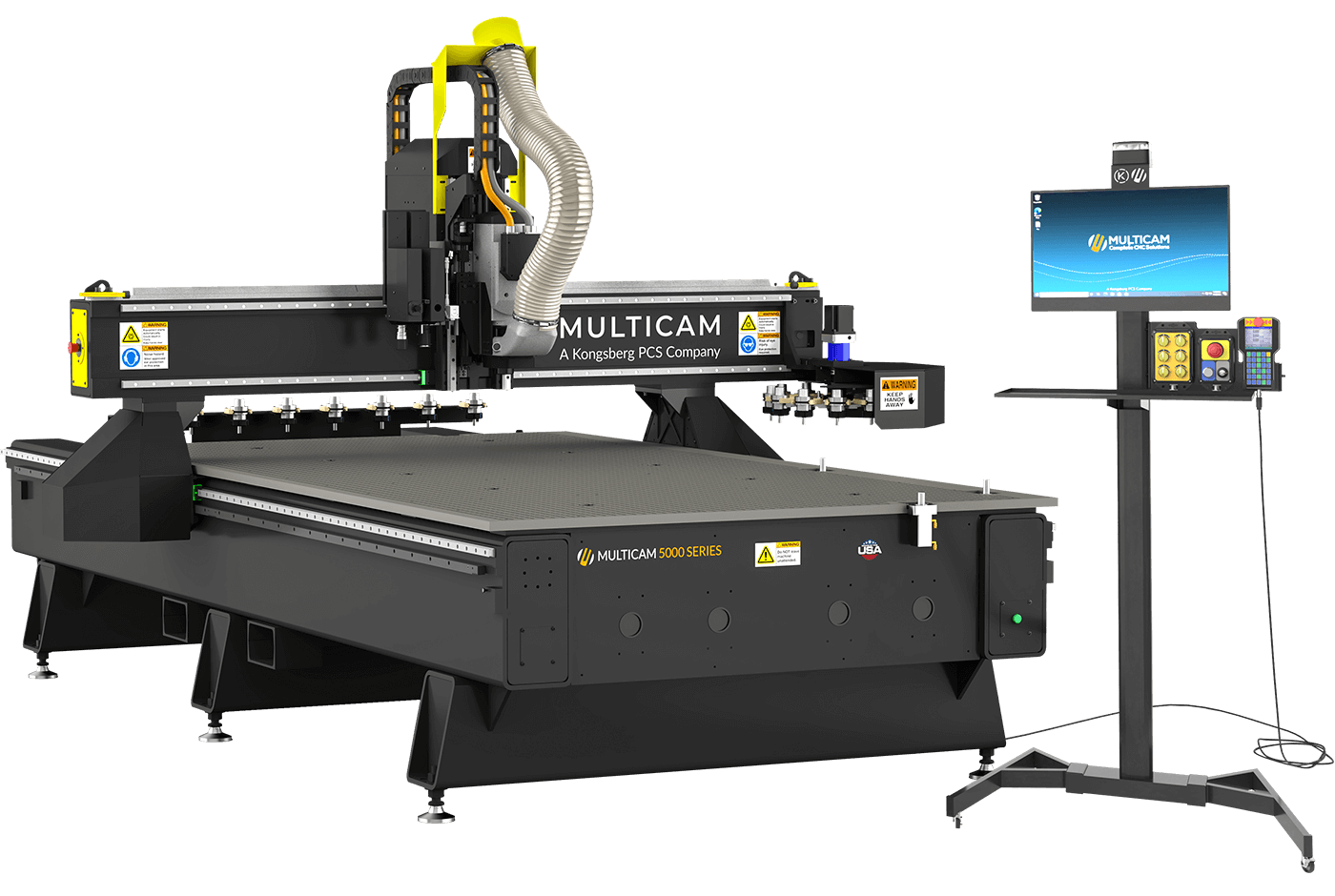

5000 Series CNC Router

A flexible heavy-duty routing machine for a broad range of large-scale applications.

5000 Series CNC Router5000 Series CNC Router

5000 Series CNC Router – Maximize Production and Maintain Quality



The 5000 Series is our mid-size CNC router. With a 1,800 IPM cut speed, you get a fast and efficient cut. A 3,000 IPM rapid traverse means this router moves quickly enough to keep your productivity high. And, with a consistently repeatability of just 1/1000th of an inch, your cutting accuracy always stays high too.

Compared to the 7000 Series, the 5000 Series CNC router comes with fewer customizable options. It also has a more compact working area that fits well in smaller workplaces. It has the same amount of power as the 5000 Series, but is more powerful than both the 3000 and 1000 Series. It also has a faster rapid traverse and cutting speed.

Since it’s made completely of steel, the 5000 Series remains durable through the toughest of workplace conditions. You’re best off using it for woodworking, non-ferrous metals, plastics, and sign making. A robust 12 MB of memory means you can easily store and transfer programs, which helps keep your productivity high.

The smaller working area with rapid traverse speeds and precise repeatability makes the 5000 Series a great fit for small production facilities. Call MultiCam today at 972.929.4070 to learn more about the 5000 Series and discuss customizable options.

Standard Features

  • MultiCam EZ Control® and EZ G-Code™ software
  • Heavy, all-steel gusseted plate frame construction
  • High-speed three-axis motion-control system
  • 12 MB memory with unlimited file size transfers
  • Brushless digital AC servo drives

Options

  • Automatic 12-position rotary tool changer and auto tool calibration
  • MultiCam CNC Knife with optional cutting heads
    Z-axis clearance options: 12” or 16”

Specifications

  • 25mm and 35mm linear ball-bearing profile rails
  • Z-axis clearance: 8”
  • Cut speed: 1,800 IPM
  • Rapid traverse: 3,000 IPM
  • Repeatability: +/- 0.001”
  • Drive system X and Y-axis: helical rack and pinion
  • Drive system Z-axis: ball screw
  • MultiVision™ Digital Registration System

Material Cut

  • Wood
  • Plastics
  • Non-ferrous metals
  • Composite materials

Applications

  • Woodworking
  • Non-ferrous metal production
  • 3-D signs and graphic applications

Basic Information

  • 5.5 – 20 HP
  • Working area: 50” x 50” to 120” x 242”
  • Rapid traverse: 3,000 IPM
  • Repeatability: +/- 0.001”
  • Standard Work surface: 1” phenolic
MultiCam 5000 Series CNC Router Size ChartMultiCam 5000 Series CNC Router Topview SchematicMultiCam 5000 Series CNC Router Sideview SchematicMultiCam 5000 Series CNC Router Frontview Schematic
