CNC Routers
Regardless of the type of cutting you need done, MultiCam has a CNC router that makes a perfect fit (and cut).
Want to talk to a specialist? Just leave your contact info below and we'll get back to you.
An accurate cut every single time
With repeatability of just 1/1000th of an inch, you get an accurate cut every single time. Every MultiCam router comes with customizable options for varying application needs.
The 5000 Series allows you to cut the largest pieces, while the Apex3R Evo and Apex1R come in the most common standard sizes for any production facility.
A broad range of materials
Various series fit a broad range of materials, which includes thick industrial plastics, non-ferrous metals, wood products and many advanced materials like fiberglass, cladding and hardened carbon fiber.
Our Machines
Choose the Router That Fits Your Operation
Entry / Value
Apex1R
Up to 1,300 IPM
Exceptional value meets shop-floor productivity. The Apex1R delivers reliable, precise routing of acrylic, PVC, aluminum, and composites — the ideal starting point for businesses that refuse to compromise on quality.
View Apex1R
Production

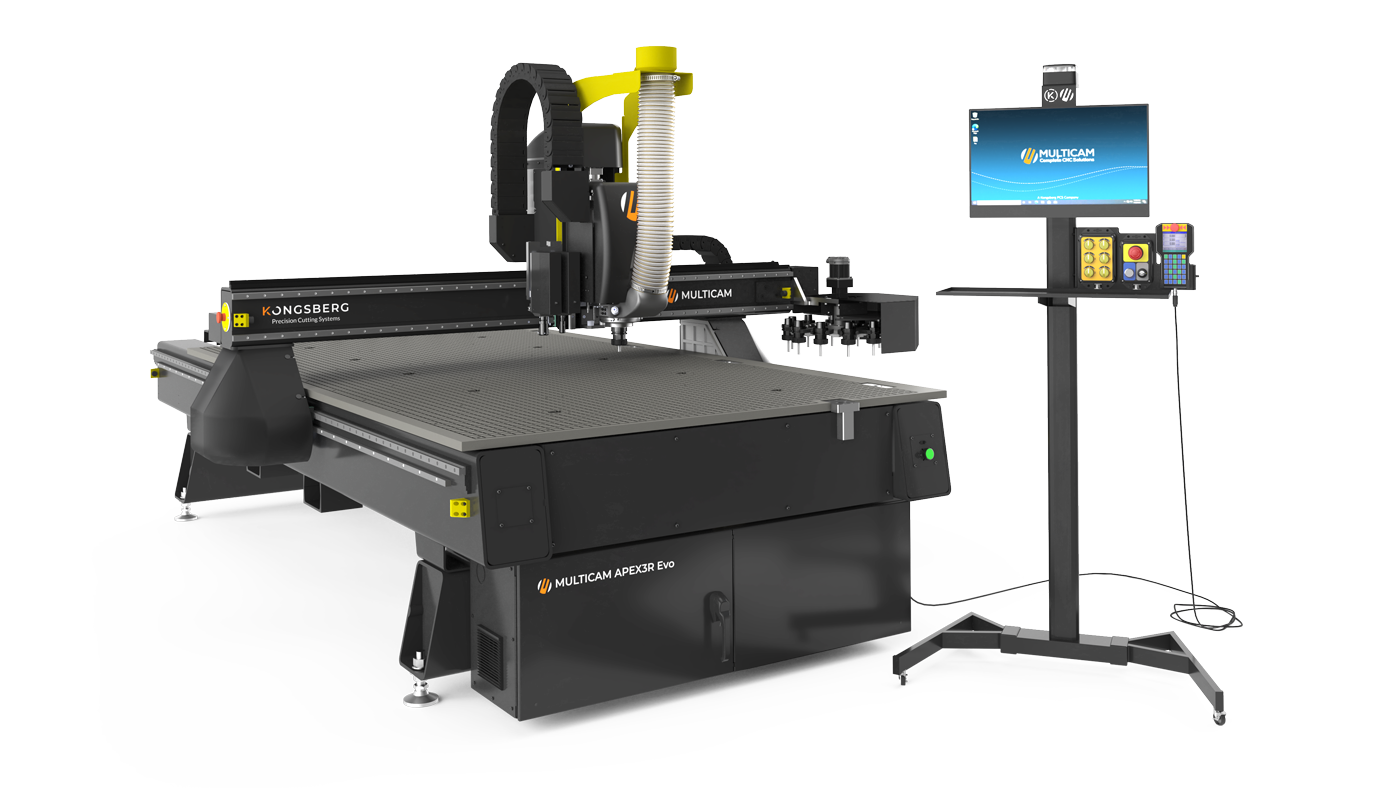

Apex3R Evo
Up to 1,950 IPM
The high-volume production workhorse. Auto Tool Changer, high-torque spindle, and CNC knife system come standard — no hidden extras. Handles materials up to 5 inches thick across a broad range of substrates.
View Apex3R Evo
Heavy Duty

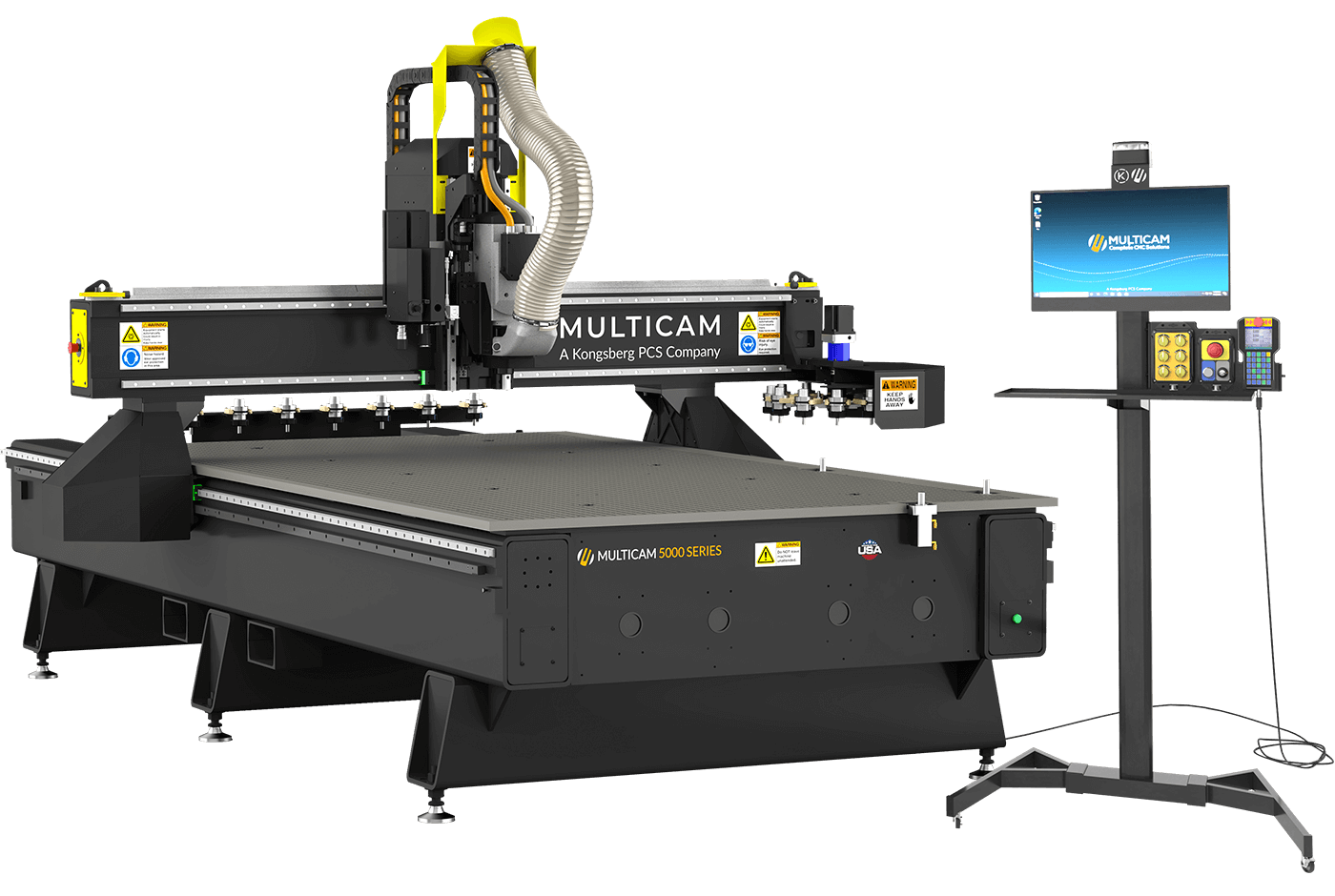

5000 Series
Up to 1,800 IPM · 3,000 IPM Traverse
Built for the largest sheets and toughest industrial materials. The all-steel 5000 Series is engineered for marine, aerospace, and large-format fabrication where maximum rigidity and durability are non-negotiable.
View 5000 Series
Side by Side
Compare All Three Models
Open a category below to compare specifications across all three machines.
Performance
| Specification | Apex1R | Apex3R Evo | 5000 Series |
|---|---|---|---|
| Max Cut Speed | 1,300 IPM | 1,950 IPM | 1,800 IPM |
| Rapid Traverse | — | — | 3,000 IPM |
| Repeatability | 1/1000 inch | 1/1000 inch | 1/1000 inch |
Spindle
| Specification | Apex1R | Apex3R Evo | 5000 Series |
|---|---|---|---|
| Spindle Power | 4–10 HP | 4–13.4 HP | Heavy-duty |
| Spindle Speed | Up to 24K RPM | 24–32K RPM | — |
Tooling & Capability
| Specification | Apex1R | Apex3R Evo | 5000 Series |
|---|---|---|---|
| Auto Tool Changer (ATC) | Optional | Standard | Optional |
| CNC Knife System | Optional | Standard | — |
| Tapping Capability | — | Standard | — |
| Coolant Mist System | Optional | Optional | — |
| Vision Registration Camera | Optional | Optional | — |
Material & Build
| Specification | Apex1R | Apex3R Evo | 5000 Series |
|---|---|---|---|
| Max Material Thickness | Up to 3 inches | Up to 5 inches | Large format |
| Frame Construction | All-steel tube | Heavy all-steel tube | Full steel |
Best Suited For
| Specification | Apex1R | Apex3R Evo | 5000 Series |
|---|---|---|---|
| Primary Use Case | Growing shops, value-driven production | High-volume, multi-process production | Marine, aerospace, large-sheet fabrication |
| Industries | Signage & Display, Plastic Fabrication | Signage & Display, Woodworking, Plastic Fabrication | Marine, Aerospace, Woodworking |
All models include MultiCam's EZ Control software. Spindle and table size options vary — contact a specialist for configurations tailored to your application.
Materials
What Can You Cut?
MultiCam routers process a wide range of substrates — from ACM, Dibond and Polymetal for signage, to MDF and plywood for woodworking, acrylic and PVC for plastic fabrication, and foam and aluminum for marine applications.
Wood
Wood
Hard/Soft Wood
Plywood
MDF
Plastics
Plastic
Acrylic
PVC
UHMW
Metal & Composite
Metal
Aluminum
Rubber
ACM
Dibond
Polymetal
Foam
Foam
EVA Foam
Applications
Built for a Wide Range of Industries
MultiCam routers are trusted across five key industries — each machine is configurable for the exact demands of your production environment.
Signage & Display
Plastic, Metal, Wood
Aerospace
Aluminum, Rubber, Plastic
Cladding
ACM, Dibond, Polymetal
Woodworking
Hard/Soft Wood, Plywood, MDF
Plastic Fabrication
Acrylic, PVC, UHMW
Marine
Foam, EVA Foam, Aluminum, Wood
Endless applications
The MultiCam Apex 1R & 3R excel in a wide range of applications from signage, 3D carving, and aluminum fabrication. Add-on accessories including automatic knife exchange and oscillation knife expand applications to print-to-cut, gasket, sound and insulation board cutting.
The large, heavy-duty table format with higher power, cut speeds, and rapid traverse speeds of the 5000 Series fit perfectly into marine and aerospace fabrication, thick aluminum fabrication, and any large sheet or pendulum process operation.
Easy-to-use software, included
All routers come loaded with MultiCam's proprietary software, so you can start cutting with extreme precision right away — no steep learning curve, no extra software costs.
